  • PLOUGH TURNING CYLINDER

Product Details

PLOUGH TURNING CYLINDER

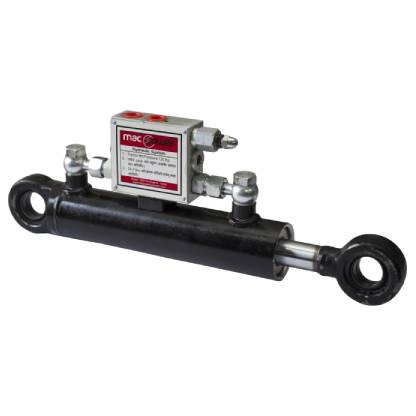

428
428

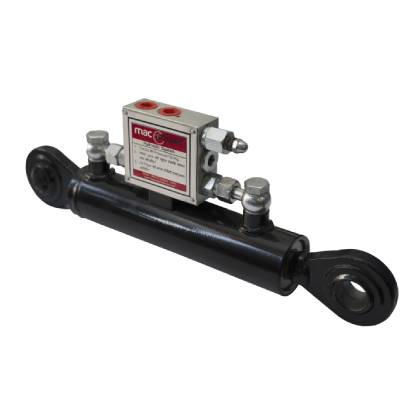

405
405

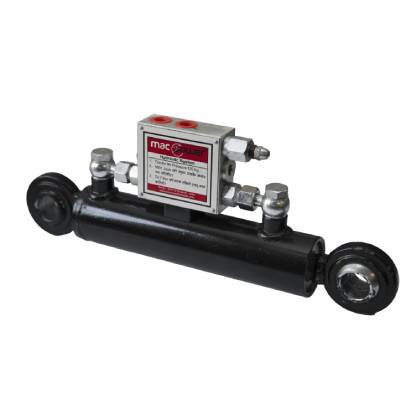

365
365

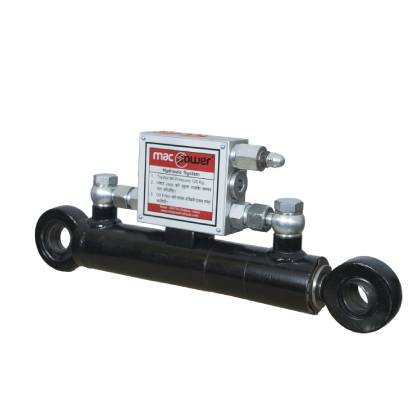

320
320

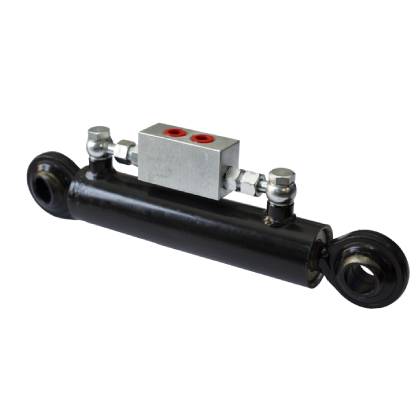

365 Butterfly
365 Butterfly
PLOUGH TURNING CYLINDER

DESCRIPTION OF PLOUGH TURNING CYLINDER

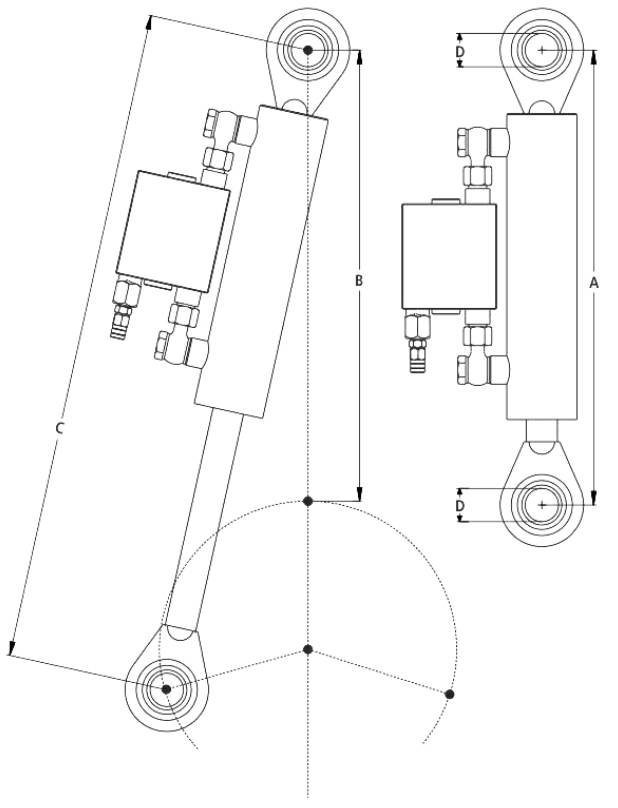

SR. NO. TYPE PISTON ROD STROKE A B+ C D
M-1 PTC-30/50-365 50 28 160 365 370 525 30
M-2 PTC-30/50-405 50 28 160 405 410 565 30
M-3 PTC-30/50-428 50 28 180 428 433 608 30
M-4 PTC-30/60-365 60 36 160 365 370 525 30
M-5 PTC-30/60-405 60 36 160 405 410 565 30
M-6 PTC-30/40-275 40 20 130 275 280 405 25
M-7 PTC-25/40-320 40 22 155 320 325 475 25
  • All dimension are in MM
  • B For Fitting parameter.
  • The type and sizes will very as per requirement of the cutomers.

TECHNICAL SPECIFICATIONS

ADVANTAGE​

  • The turning cylinder is power save and eco-green.
  • The maintenance cost is very low and easy to operate to the farmer.
  • Compared to mechanical plough and also benefited to the crop.
  • Every year there is a growth in crop to farmer and benefited for the life of land.
  • All of our process are certified according to the latest industrial standards and guarantee reliable and verifiable quality at the highest level.



MATERIAL SPECIFICATIONS
Cylinder Pipe Honed Tube - ST52
Rod Carbon Steel Hard Chrome Plated
Spool Body Carbon Steel
Spool Carbon Steel Hardened
Seals NBR
